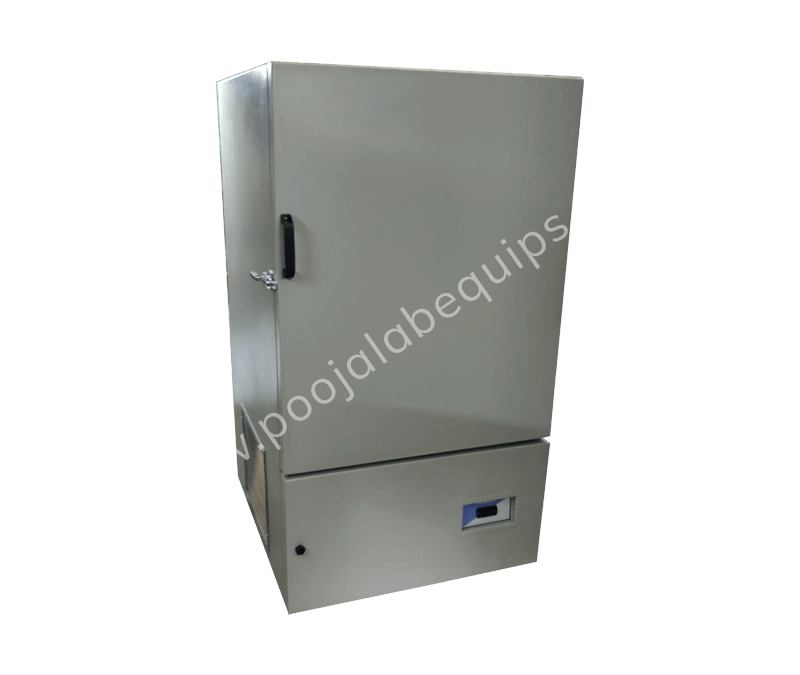

PLE-111 Low temperature Deep Freezer Vertical & Horizontal
Pooja Lab's low temperature deep freezers are deliberately designed for Plasma storing and other requiring close low temperature control and full access to sample within. You can choose among from the four vertical and horizontal sizes available in 2 versions. The operating temperature ranges from minus 25°C to minus 40°C.
Specification of Vertical Cabinet
| Model No. |
Volume cu.ft / litres |
Shelves |
Interior dime. WxDxH cms |
External dime. WxDxH cms |
| SLCV-01 |
03.22/092 |
1 |
45 x 45 x 45 |
65 x 70 x 110 |
| SLCV-02 |
06.18/176 |
2 |
50 x 50 x 70 |
70 x 75 x 135 |
| SLCV-03 |
09.61/274 |
2 |
55 x 55 x 90 |
75 x 80 x 155 |
| SLCV-04 |
12.32/351 |
3 |
56 x 56 x 112 |
76 x 81 x 177 |
Specification of Horizontal Cabinet
| Model No. |
Volume cu.ft / litres |
Interior dime. WxDxH cms |
External dime. WxDxH cms |
| HDF-01 |
03.22/092 |
45 x 45 x 45 |
101 x 66 x 80 |
| HDF-02 |
06.18/176 |
70 x 50 x 50 |
126 x 71 x 85 |
| HDF-03 |
09.61/274 |
90 x 55 x 55 |
146 x 76 x 90 |
| HDF-04 |
12.32/351 |
112 x 56 x 56 |
168 x 77 x 91 |
Pre-installation requirements:
- Stabilized 230V 50Hz AC single-phase 15 amps power supply with MCB and proper earthing within the radius of one meter from the installation.
- One feet free space around for installation in an air-conditioned or in a cross ventilated, dust free and clean environment. (Room temperature should be below 30°C)
- Zero level flooring and Floor level drainage within the radius of one meter from
the installation.
- Continuous DM or Distilled Water Supply line 1/2" BSP with nipple valve connection within the radius of one meter from the installation.
