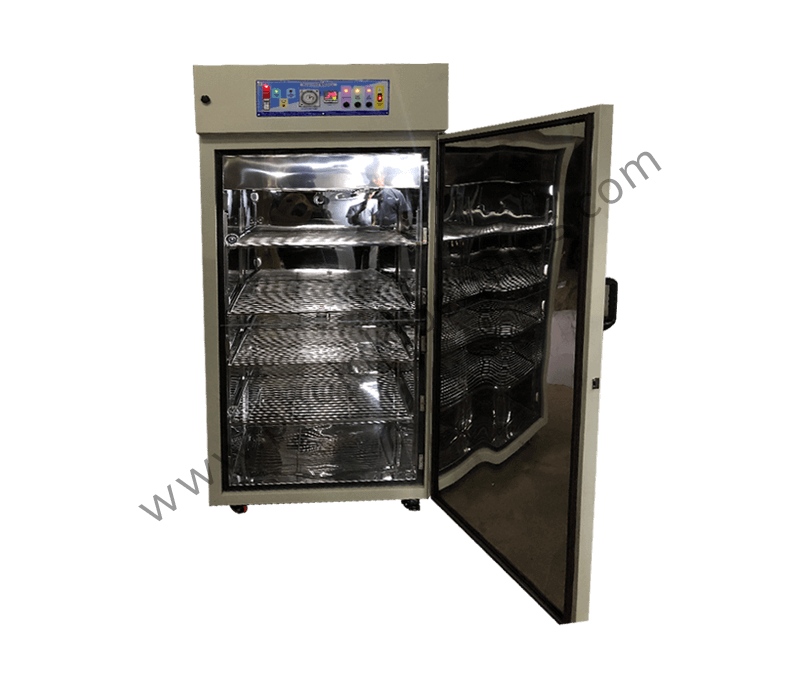

PLE-102 Pharmaceutical / Medical Refrigerator
A Pharmaceutical Refrigerator also known as a medical refrigerator or drug refrigerator, is a specialized refrigeration unit designed to store pharmaceuticals, vaccines, and other medical products at controlled temperatures to ensure their efficacy and safety. These refrigerators are a critical component of healthcare facilities, pharmacies, research laboratories, and pharmaceutical manufacturing facilities.
Compliance with Regulations: Pharmaceutical refrigerators are designed to meet stringent regulatory requirements, such as those established by agencies. Compliance ensures that pharmaceuticals are stored under appropriate conditions to maintain their potency and safety.
Proper storage of pharmaceuticals and vaccines is critical to maintaining their effectiveness and preventing contamination or spoilage. Pharmaceutical refrigerators play a vital role in meeting these requirements and ensuring the quality and safety of medical products throughout their storage and distribution processes.
Refridgerator Sysem:
- Heavy-duty refrigeration system
- Digital control system
- Positive airflow systems and industrial quality cabinet construction
- Heavy duty Compressor for industrial, clinical and scientific use
- Higher capacity industrial grade hermetically sealed air-cooled compressor coupled with forced air evaporation system
Control Sysem:
- Top mounted control system
- Digital electronic technology to simplify operations that deliver greater accuracy
- Audio/visual display for over temperature and under temperature
- De-frosting timer
- Adjustable temperature controller range +2°C to +8°C. ±2°C
Cabinet construction:
- MOC in non-GMP interior and shelves are corrosion resistant SS-304 mirrorfinish and exterior is MS powder coated. In GMP interior and shelves are SS-316mirror finish and exterior is SS-304 mat finish.
- High density CFC free PUF insulation ensures absolute insulation and energy conservation.
- Multi pane glass external doors on aluminum anodized frame with full magnetic gasket for proper sealing with lock and key.
- Non-conductive inner doors allow access to compartments. This minimizes cold air loss in the unopened compartments.
- Two adjustable rods for clamping columns. Two portholes with rubber bush closer and two trays with adjustable shelf height
- Two duplex vapor proof interior outlet remains continuous ON.
- Inner light with manually operated switch.
- Positive forced air circulation maintains temperature uniformity at all shelf levels.
- For easy mobility the units mounted on heavy-duty caster wheels
Additional Safety System:
Safety time delay and built-in over loaded protection for compressor. MCB for mains. In order to protect the refrigerator contents a safety thermostat is installed to cut-off compressor power supply in-case of any failure of controller.
| Model No. | Capacity in liters | No. of door | Interior dime. WxDxH (inches/mm) approx |
External dime. WxDxH (inches/mm) approx |
|---|---|---|---|---|
| PPR-01 | 0500 | ONE | 22 x 25 x 56 | 28 x 32 x 85 |
| PPR-02 | 0770 | ONE | 36 x 24 x 54 | 42 x 31 x 83 |
| PPR-03 | 1001 | ONE | 36 x 30 x 56 | 42 x 37 x 85 |
Pre-installation requirements:
- Stabilized 230V 50Hz AC single-phase 20amps power supply with MCB and proper earthing within the radius of one meter from theinstallation.
- To be installed in an air-conditioned or in a cross ventilated, dust free and clean environment with free space around. (Room temperature should be below 30°C)
- Zero level flooring and Floor level drainage within the radius of one meter from the installation.
