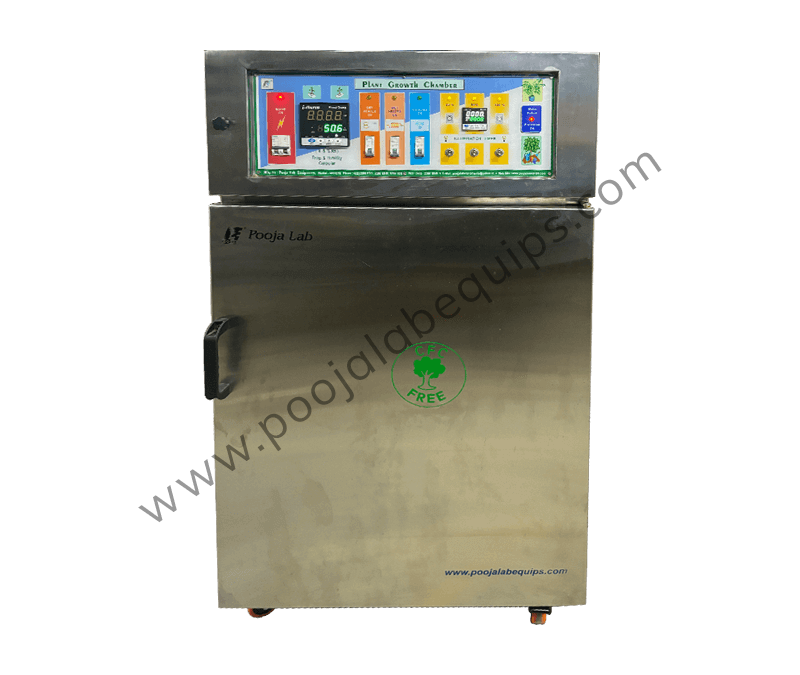

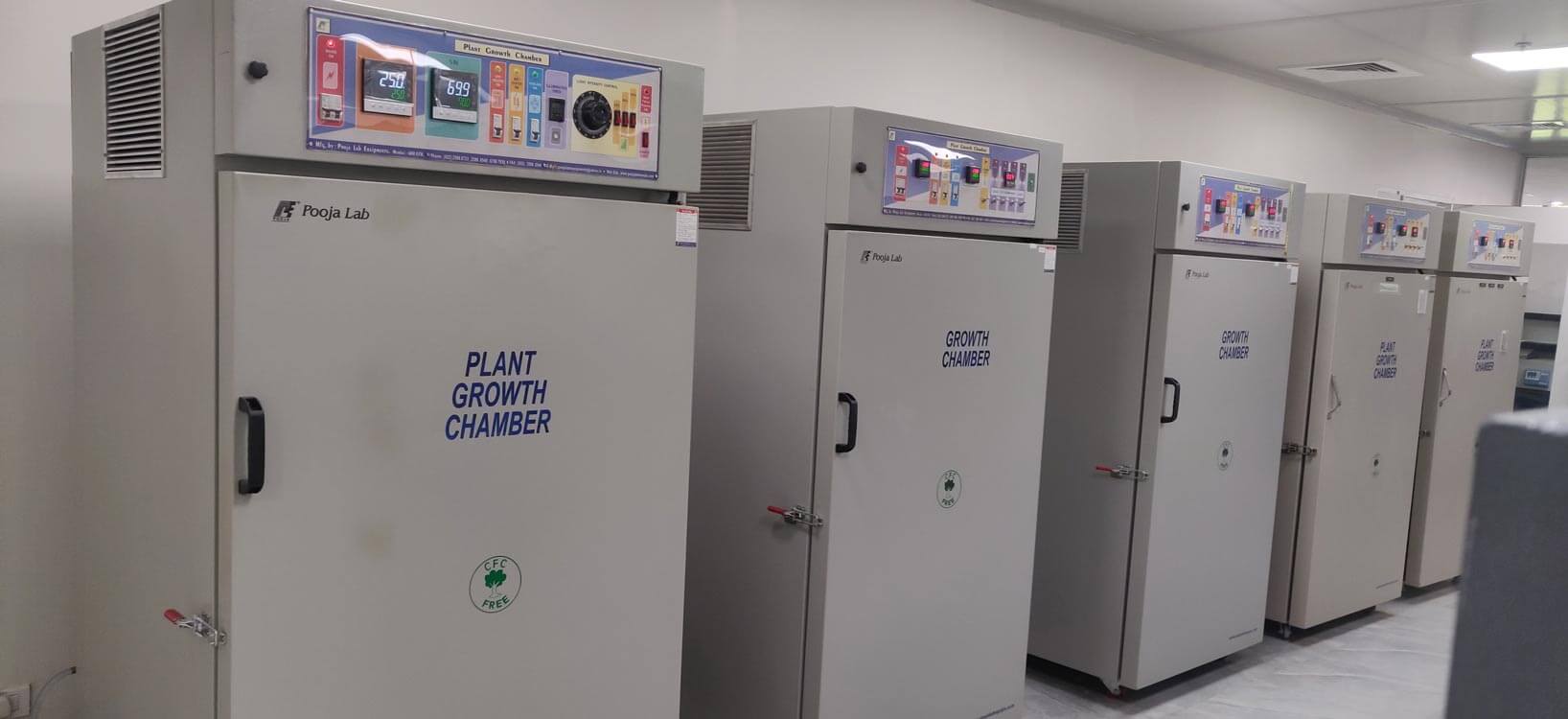

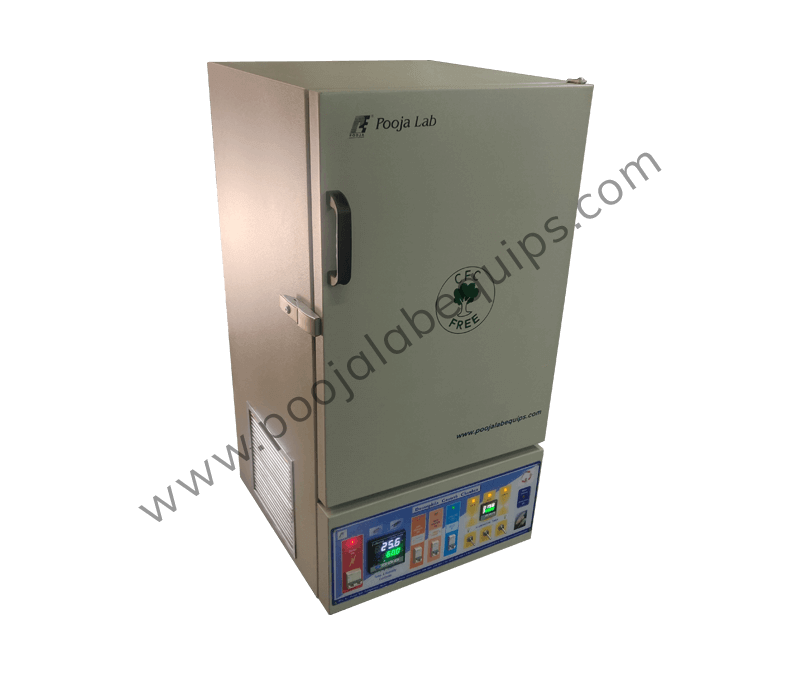

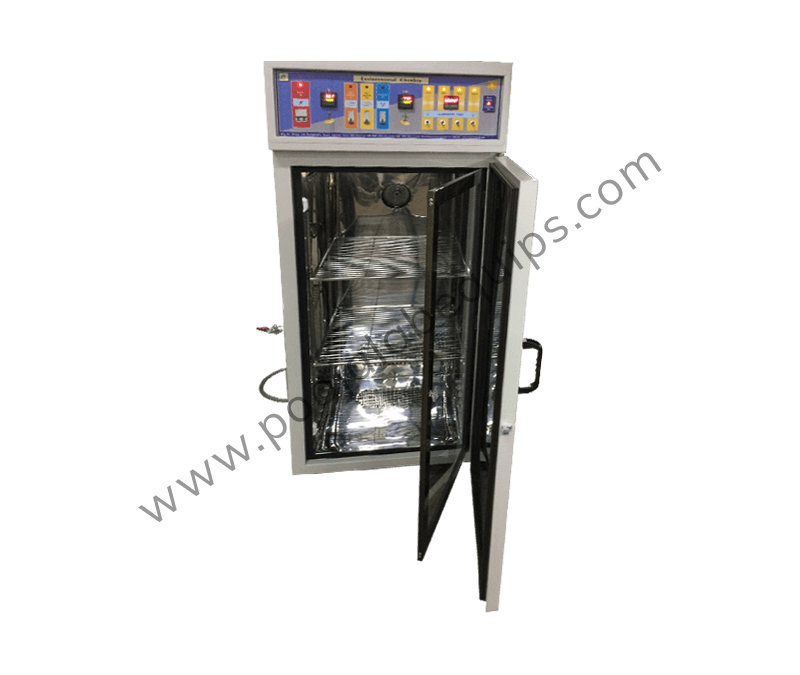

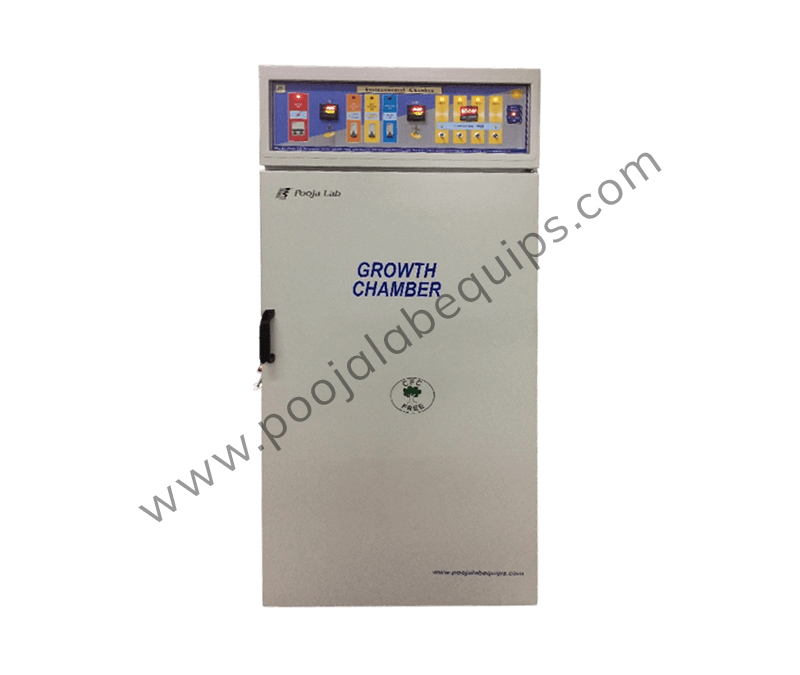

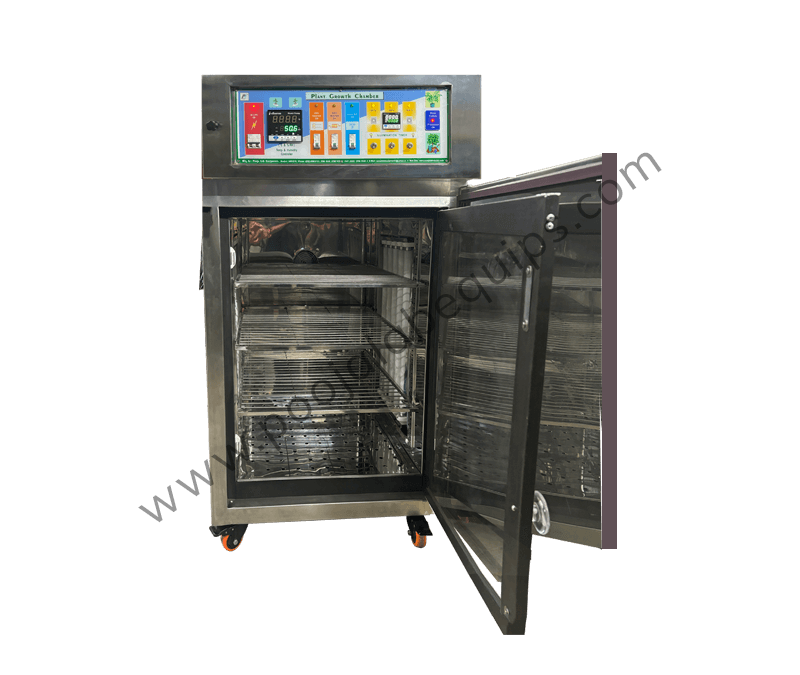

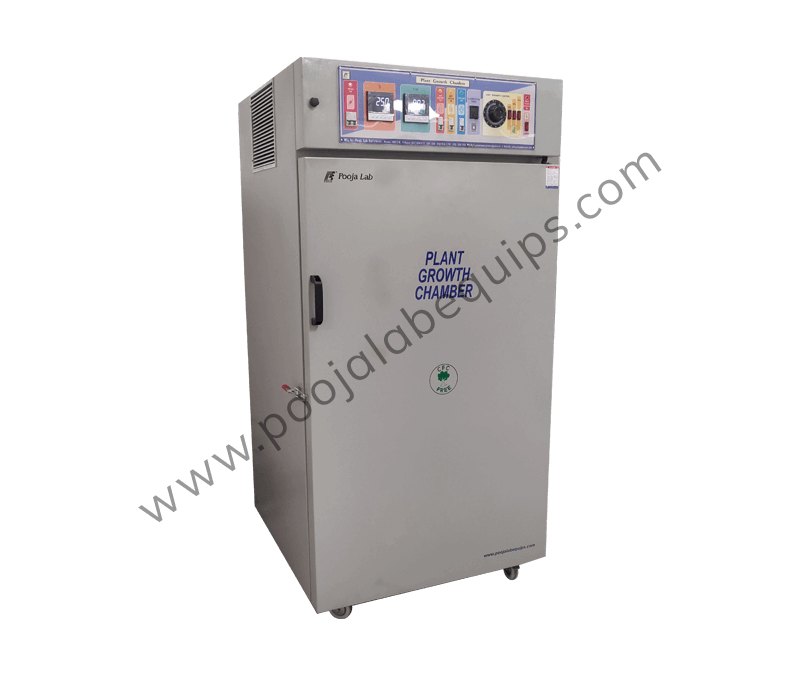

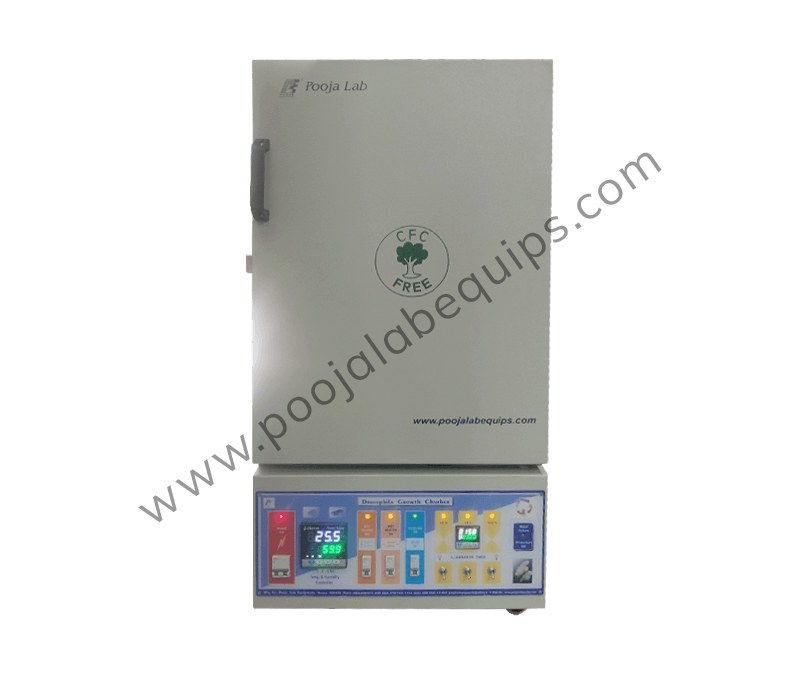

PLE-105 lluminated Plant Growth Chamber
Pooja Lab's illuminated Plant Growth Chambers are non-detachable and designed to create duplicate natural conditions within the chamber are available in two versions i.e. non-GMP and GMP choose from 5 different models are facilitate many application such as botanical and agricultural research including seed germination studies, plant pathology, plant tissue culture, plant genetic research, shelf life testing, chromatography test, plant growth studies, microbiological propagation, biotechnology and more. These chambers are equipped with latest Microprocessor based controller. Temperature Range between 10 to 50°C ± 2°C. and humidity range between 40% to 95% ± 3%. Temperature uniformity will be ±3° and RH will be 5%.
Illumination:

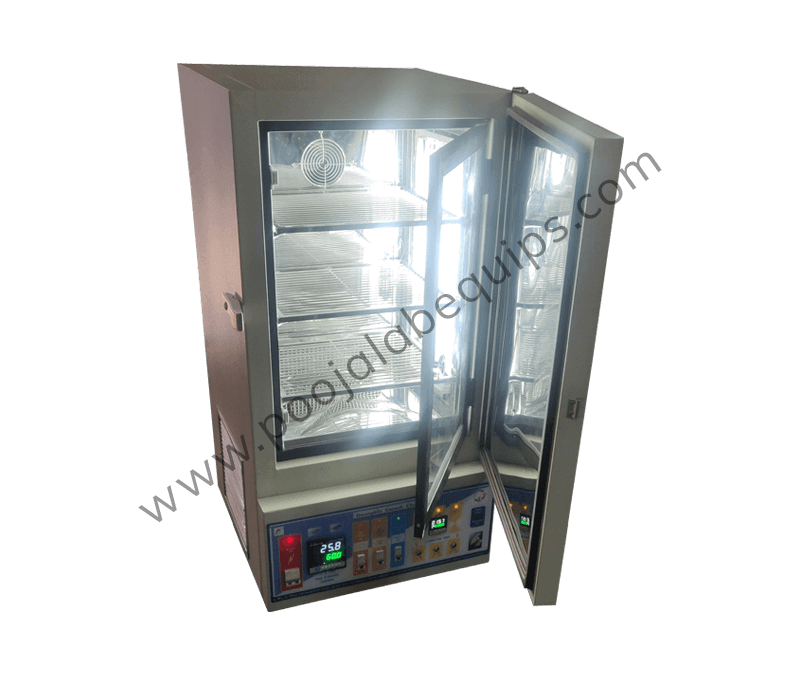

- Special daylight fluorescent tube lights fixed on both vertical inner chamber to get maximum lightin product area.
- Higher capacity cooling system provided to take care of reduction of temperature during the day and night cyclic test while using illumination and it won't disturb relative humidity in the work space.
- Light intensity will be 10000 LUX at 30cm distance.
| Model No. | Capacity in liters / cu. ft. | No. of door | Interior dime. WxDxH (inches/mm | External dime. WxDxH (inches/mm) |
|---|---|---|---|---|
| PG-01 | 285/10.00 | 1 Nos | 24 x 24 x 30 (0610 x 0610 x 0762) | 34 x 45 x 54 (0864 x 1143 x 1372) |
| PG-02 | 356/12.50 | 1 Nos | 24 x 30 x 30 (0610 x 0762 x 0762) | 34 x 51 x 54 (0864 x 1295 x 1372) |
| PG-03 | 576/20.22 | 1 Nos | 24 x 28 x 52 (0610 x 0711 x 1321) | 34 x 49 x 75 (0864 x 1245 x 1905) |
| PG-04 | 802/28.12 | 1Nos | 30 x 30 x 54 (0762 x 0762 x 1372) | 40 x 51 x 77 (1016 x 1295 x 1956) |
| PG-05 | 1012/35.52 | 1 Nos | 30 x 33 x 62 (0762 x 0838 x 1575) | 40 x 54 x 87 (1016 x 1372 x 2210) |
Optional Accessories:
- Additional tray
Pre-installation requirements:
- Stabilized and unobstructed power supplies of 230 volts 50Hz AC single-phase 35 amps with MCB and proper earthing within the radius one meter from the installation.
- To be installed in an air-conditioned or in a cross ventilated, dust free and clean environment with free space around. (Room temperature should be below 30°C)
- Zero level flooring and Floor level drainage within the radius of one meter from the installation.
- Continuous DIM or distilled water supply line of 1/2" BSP with nipple valve connection with in the radius of one meter from the installation.
